Standard sonobuoy frequency range 136 to 173.5 MHz
 Custom frequency ranges available
 Independent receiving of up to eight sonobuoy channels
 Fully integrated and compact solution
 Optional antenna preamplifier and distribution unit
 Optional sonobuoy antenna
 Ruggedized rack-mount enclosure for mobile operations

The WiNRADiO MS-8118/WSB Sonobuoy Telemetry Multichannel Receiving System provides an elegant, fully integrated solution, specifically designed for reception and monitoring of VHF telemetry transmitters, in particular sonobuoy transmitters, on multiple channels.

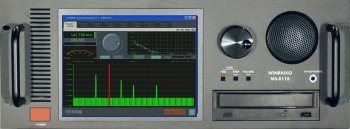

This system is based on a 19� rack-mounted industrial computer. The front panel features a high-contrast wide-angle display. There is provision for connection of an external keyboard and mouse. The system is capable of simultaneous independent monitoring of up to eight channels in the sonobuoy VHF range of 136 to 173.5 MHz. Other frequencies are available upon request.

Well proven WiNRADiO card-based receivers are at the heart of the WiNRADiO MS-8118/WSB system. Each card contains a high-performance receiver designed to operate in the harsh electromagnetic environment existing inside a computer-based system, and ideally suited for simultaneous multichannel operation.

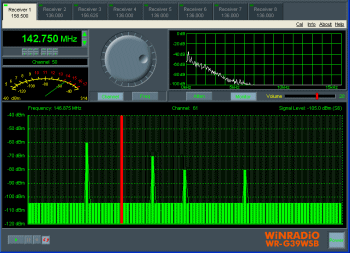

User interface

The MS-8118/WSB software makes it possible for the user to control each individual receiver separately and observe its operational status, as well as set the system parameters for multichannel reception and monitoring operations.

The optional WA-108S Antenna Distribution System contains a low-noise preamplifier with extremely high linearity, and a power splitter with high isolation between outputs.

The optional AX-61S antenna complements the entire sonobuoy telemetry receiving system with a high-efficiency, ruggedized antenna designed to withstand harsh operating conditions in the marine environment.

The MS-8118/WSB Sonobuoy Telemetry Multichannel Receiving System is shipped in a specially designed ruggedized 19" rack-mounted chassis with built-in shock absorbers, to ensure safe shipping. The unit can then be either removed from the enclosure, or operated from inside it. This is particularly useful for mobile operation.

For larger installations, various rack-mount options are available (see an example of a WiNRADiO multichannel system pictured on the right).
