  WiNRADiO AX-81S Active HF Antenna
WiNRADiO AX-81S Active HF Antenna

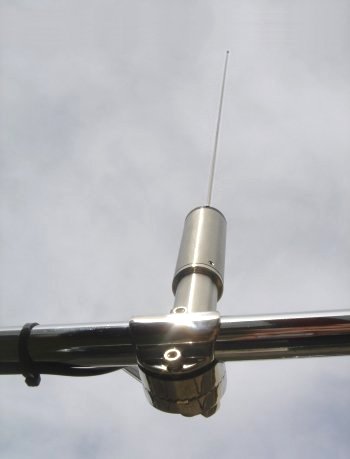

(Mounted using the optional WR-AC-RMB-114 base.)
The AX-81S antenna is a compact active HF antenna, ruggedized to suit harsh outdoor environments, and particularly suitable for marine environments. While it has been designed primarily as a marine antenna, it can be useful anywhere where good HF performance and reliability are required, and where space is at premium. The antenna is receive-only, and is suitable for professional as well as consumer applications.

The antenna covers the frequency range of 2 to 30 MHz, or 300 kHz to 50 MHz with somewhat reduced (but still excellent) performance.

While designed to be entirely general-purpose, the AX-81S antenna is especially suitable for the WiNRADiO G33EM marine receivers and G3 series of HF receivers.

The principal elements of the antenna are constructed of a low-carbon austenitic stainless steel that contains molybdenum. Austenitic (chromium and nickel content) stainless steels have high ductility (i.e. ability of a metal to plastically deform without breaking or fracturing), low yield stress and high ultimate tensile strength, when compared to a typical carbon steel. The 316L grade as used for the AX-81S antenna also offers an especially high degree of resistance to corrosion. The choice of materials and the durable construction of the AX-81S antenna will ensure trouble-free operation for many years.

The antenna was designed for rapid installation, with an easy-to-follow installation procedure supplied with the antenna.

Optional accessories

WR-AC-RMB-114 Heavy Duty Rail-Mount Antenna Base WR-AC-RMB-114 Heavy Duty Rail-Mount Antenna Base The WR-AC-RMB-114 heavy duty rail-mount antenna base has a single swivelling mount. It accepts any standard antenna with a 1" diameter standard #14 thread (such as the AX-81S antenna) and can be mounted on a railing of 7/8 to 1" diameter. Material is stainless steel 316 grade.

WR-AC-DMB-114 Heavy Duty Deck-Mount Antenna Base WR-AC-DMB-114 Heavy Duty Deck-Mount Antenna Base The WR-AC-DMB-114 heavy duty deck-mount antenna base has two swivelling mounts for complete adjustability. It accepts any standard antenna with a 1" diameter standard #14 thread (such as the AX-81S antenna). Material is stainless steel 316 grade.

WR-CMC-30 Common-Mode Choke The WR-CMC-30 Common-Mode Choke eliminates common-mode noise from the antenna feedline, resulting in a considerable increase of the received signal quality. Common-mode noise is generated by computers and other electric or electronic appliances, and can be a problem especially in the lower portions of HF spectrum.

The Common-Mode Choke can be also very useful to provide an alternative earthing point if the AX-81S antenna itself cannot be grounded due to its location, or its ground connection is inadequate.

WR-BT-650 Power Injector The WR-BT-650 Power Injector (Bias "T") provides a means of injecting DC power in a coaxial cable, to power the antenna from a remotely located power supply. It features a flat frequency response and low insertion loss.

Note that the Power Injector is not required if the AX-81S antenna is used with the WiNRADiO G33EM receiver which already provides suitable power for the antenna at the receiver's antenna input. For other applications, we recommend using WiNRADiO SF-41 range of low-noise power supplies.

Technical Specifications
Type Active HF antenna monopole
Frequency range 2 - 30 MHz @ 3 dB
(excellent performance from 300 kHz to 50 MHz)
Output IP2 +60 dBm
Output IP3 +30 dBm
Supply voltage 12 V DC (min 10 V, max 14 V),
supplied via the coaxial cable

Note: The WiNRADiO G33EM receiver supplies power for the AX-81S antenna at its antenna input, and no external power supply is needed. For any other applications we recommend using a WiNRADiO SF-41 Low-noise Linear Power Supply together with the WiNRADiO WR-BT-650 Power Injector.

Supply current 40 mA @ 12 V
Impedance 50 ohm
Connector BNC (concealed in body)
Operating temperature -20� to 80�C
Active element length 1160 mm (3.8 ft)
Active element diameter 3 mm (0.118 in)
Body length 190 mm (7.45 in)
Body diameter 38 mm (1.45 in)
Mounting 1" diameter standard #14 thread
Overall length 1350 mm (4.43 ft)
Weight 550 g (1.21 lb)

Specifications are subject to change without notice due to continuous product development and improvement.
