The AX-24B antenna is a compact UHF/SHF omni-directional receiving antenna for professional surveillance and monitoring applications.

The antenna covers the frequency range of 400 to 4000 MHz.

While designed to be entirely general-purpose, the WiNRADiO AX-24B UHF/SHF Discone Antenna is especially suitable for use with the WiNRADiO G3 series of VHF/UHF receivers, especially for the G315 receivers working in conjunction with the AMFE™ Antenna Multiplexer and Frequency Extender.

Its durable construction from high-grade stainless steel, alloy and aluminium will ensure trouble-free operation for many years. The antenna was designed for rapid and easy assembly.

Options

Mast mounting clamps are not supplied as standard, and can be ordered as a separate option. The ordering code for these heavy-duty galvanized mounting clamps is WR-AC-MC-01.

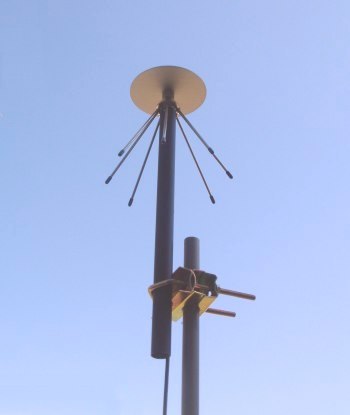

WR-AC-MC-HEA Horizontal Extension Arm. Used for offset mast mounting as shown in the adjacent picture.

WR-AC-MC-UMC Universal Mounting Clamp. Used for offset mast mounting.

This antenna is suitable for the following WiNRADiO receivers:

WiNRADiO WR-G305e
WiNRADiO WR-G305i
WiNRADiO WR-G315e
WiNRADiO WR-G315i

See also:

WiNRADiO AMFE™

Technical Specifications
Type	Wide-band discone RX antenna
Frequency range	400 - 4000 MHz
Gain	2.0 dBi typ.
Impedance	50 ohm
Connector	UHF
Operating temperature	-30� to 60�C
Mounting tube diameter	25 mm (1")
Mounting tube length	400 mm (15.7")
Length of sloping radials	162 mm (6.4")
Diameter of disc element	125 mm (5")
Overall height	460 mm (18.1")
Weight	503 g (1.1 lb)

Specifications are subject to change without notice due to continuous product development and improvement.
