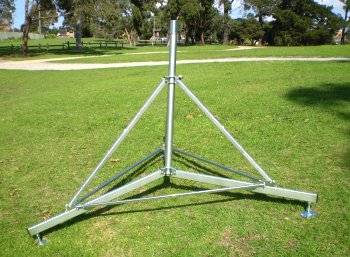

The tripod has a fixed mast length of 146 cm (4.79 ft), with the leg spread fixed at 120� around the mast and the feet centered 117 cm (3.84 ft) away from the mast. Each of the telescopic upper legs can be adjusted individually for a coarse level adjustment on uneven or inclined mounting surfaces.

Each telescopic upper leg can extend or retract by up to 20 cm (7.9") from its default length, i.e. the length it would be set at for a level mounting surface, which translates to lifting or dropping the lower leg by up to 20�. This allows the tripod to be leveled on slopes up to 20�.

Fine level adjustment can be done using the leveling feet. The total range of fine adjustment is 60 mm (2.4") for each foot, i.e. 30 mm (1.2") up, and 30 mm down. A bull's eye spirit level is mounted on the upper mast bracket to make tripod leveling convenient and easy.

Each foot has four 12.5 mm holes through its base plate, which are provided to securely anchor the tripod. The holes are evenly spaced at 90� around the M16 center bolt, with the distance between opposite holes being 98 mm. The bolt on each foot has a pivot joint in the base plate, which allows for an articulation of 8� from the vertical, in any direction. This further assists if a tripod foot is to be mounted on a slanted surface.

Extra stability is provided to the tripod by three leg braces, with each brace fitted to outer points on two adjacent legs. The length of each brace is adjustable to provide the required pulling strain. A ball and socket joint at each end of the brace ensures lateral movement is possible, particularly where legs are mounted at different heights.

The mounting point at the top of the mast is made from a solid steel bar, which unlike a hollow pipe, will not dent in when the pinch bolts are firmly tightened.

A zinc plated surface finish provides the tripod with an attractive look, as well as extra protection against corrosion.

The tripod is shipped with a comprehensive step-by-step illustrative manual for fast and easy self-assembly.
